Pentair LED Pool Lights

Pentair has a few LED light models. They vary in size and the type of niche required. The chart to the right summarizes the light specifications.

Pentair's guideline is to aim for 4 lumens per square foot of pool surface. For example, if the pool is 500 sq-ft, you need 500x4=2000 lumens. This would be 4 MicroBrites or 2 IntelliBrite rgb.

Inyo Pools also has a good blog on How Many Lights Do I Need For My Pool? with a table summarizing the coverage of the different Pentair lights.

Jandy has an excellent LED Lighting Design Guide.

2025-2026 Pentair Lighting Catalog

Lighting parts can be found in the Pentair LIGHTING PARTS Product Catalog 2025-2026.

Pentair MicroBrite

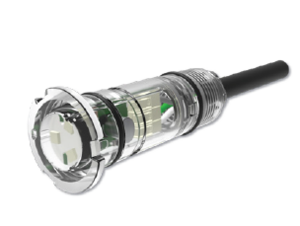

The MicroBrite is Pentair's latest third-generation LED light. It is a compact 12V LED light that is only 3.5 inches long and installs in a standard 1.5-inch NPT threaded pool wall fitting. No light niche is required.

The picture below shows four Pentair Microbrites in a 33' x 14' pool: two in the pool, one on the tanning ledge and one in the spa.

4 Pentair MicroBrites

The MicroBrite lights connect to any Pentair automation control system or the IntelliBrite controller.

There are videos on YouTube of the MicroBrites at nite - https: //youtu.be/tJJs3A0jn2A

The MicroBrite lights come in two versions.

• The 12 VAC MicroBrite White Light has three different brightness levels. There is a white light model and a warm white light model of the MicroBrite White Light.
• The MicroBrite Color light has seven pre-programmed color light shows or one of five selectable fixed colors. The MicroBrite Color light can be cycled through 14 settings - 7 party mode setting and 5 fixed colors - blue, green, red, white, magenta.

There is also the 618040 MicroBrite-to-GloBrite adaptor that installs onto any MicroBrite Light and allows it to be mounted into a GloBrite Niche or a ColorVision Bubbler.

MicroBrite Combo Kits are available that include either two lights or four lights, and one 300 watt transformer, 120V Input, 12V Output.

MicroBrite Turtle Edition light contains a 620nmred/orange light, for special oceanfront pool applications in certain areas with regulations intended to protect sea turtles.

To try to prevent water leaks into the MicroBrite lights you should place a bead of clear silicone sealant around the back of the clear lens where it meets the casing and let it dry for 24 hrs before installing the Microbites. And seal the back of the casing where the parts connect together.

The MicroBrite lights are non-serviceable. The complete light assembly must be replaced if anything fails in them. The MicroBrite light cannot be used on a dimmer circuit. Using the MicroBrite on a dimmer switch will result in permanent damage to the light.

Repairing a Pentair MicroBrite light describes how a talented member did component level repairs of his Microbrite light.

IntelliBrite Architectural Series Pool and Spa Lighting

In late 2023 Pentair released their next generation of IntelliBrite lights.

Pentair claims:

• Improved proprietary LED product design
• Spreads light widely and evenly in all directions to minimize hot spots, dark areas, glare and stripes
• More light, more energy efficient — now 60% brighter and 50% more energy efficient than its predecessor
• Compared to Pentair IntelliBrite 5G Color LED Pool Light in white color mode only. The IntelliBrite Architectural Series delivers higher lumen output (brightness) and lumen per watt efficiency compared to the IntelliBrite 5G Color LED Pool Light depending on color mode. The brightness increases for each color are as follows: 28% for blue; 60% for white (RGB); 118% for green; 141% for red. Energy efficiency improvements for each color are as follows: 17% for blue; 50% for white (RGB); 58% for green; 19% for red.
• Compared to Pentair IntelliBrite 5G White LED Pool Light, IntelliBrite Architectural Series White Light delivers 2.3% higher lumen output and consumes 44% less power.

Pentair IntelliBrite 5G

The IntelliBrite 5G was Pentair's first generation LED pool light. The IntelliBrite comes in both a white light model and a color changing model. You can choose from 5 predetermined fixed colors (blue, green, magenta, white and red) or 7 popular preprogrammed "color shows".

The beam pattern of the white light can be adjusted by rotating the lens 180 degrees for a wide or narrow beam pattern. The IntelliBrite 5G comes in 120V and 12V versions.

Intellibrite 5G lights can be controlled by a:

• IntelliTouch, EasyTouch or IntelliCenter automation system
• IntelliBrite Control panel
• standard wall-mount light switch.

Multiple IntelliBrite lights can be connected via a junction box to a single control so that all lights can be switched on and off together. If you want to control lights individually for on/off and color changes they need to be on separate circuits and individual relays in an automation controller.

The IntelliBrite 5G light cannot be used on a dimmer circuit. Using the IntelliBrite on a dimmer switch will result in permanent damage to the light. This screw mounts and electrically grounds the housing securely to the mounting ring and wet niche. Failure to use the screw provided could create an electrical hazard which could result in death or serious injury to pool users, installers or others due to electrical shock.

Note that the pilot screw holding the face ring to the housing is bronze or stainless steel and must be used.

EasyTouch Requires Firmware 2.010 for IntelliBrite Color Changing

If your label isn't present or readable, you can go to Menu > Diagnostics > Software Rev and see what's listed for "UOC" (universal outdoor controller)

It was added in Ver 2.010, per the Pentair firmware revision doc:

• Version 2.010 5/5/08
• New processor upgrade requires version 2.010 and higher. Cannot be applied to older EasyTouch systems.
• Added IntelliBrite Pool/Spa light support

If your board was built before 5/5/08, you'll need a new board since the new 2.x firmware won't fit on the old 1.x boards

Early Model IntelliBrite Defect

Pentair had problems with early gen IntelliBrites and had since fixed the problem. Apparently they had some defective chips on the board, and the board itself was backed by a thin aluminum heat sink that was found to be inadequate. They now have a thick copper heat sink and he claimed they haven't had to replace any of those yet.

They always lose the red color first. It's the driver in the light that goes bad and a replacement driver is nearly $400. Might as well just but a new light

The U1 chip that seems to blow up is a Linear Technologies (now Analog devices) LT3496 LED driver, packaged in an impossibly-small-to-hand-solder UFD form factor. They make a 125 and a 150 degree C version but they have the same markings so we can't tell what's actually on the board.

A member examined two of these boards on his bench:

• The first has the older smaller aluminum heat sink backing and weighs 3.6 oz. This one has a visibly smoked U1
• The second has the extra copper heat sink backing and weighs 6.5 oz. This board probably works but J4 has been torn off, taking the board traces with it. This is a different issue but the board was designed with a surface mount quick-fit connector whereas I'd prefer to see a stronger physical connection to the board. Considering their cost, these things should be able to deal with a bit of force!!

Digi-Key has the 150 degree U1/LT3496H part (H denotes the 150 degree version) for 9 bucks and change.

The datasheet suggests that if the junction temperature gets over 125/150 degrees it will have problems. If these failures are indeed heat related, He is not yet sure which part is actually overheating. it could be the driver itself, or it could be that another part - in conjunction with the thin heat sink - gets hot enough to raise the temperature of the entire board above the driver's junction temp threshold and smokes it. 125/150 degrees C is pretty hot though.

IntelliBrite Heatsink Hack

Overheating seems to damage the InetlliBrite driver boards. Some failed boards show charred brown spots.

Looking closer at the design of this light, the heat is intended to transfer from the copper backing of the PCB to the light housing to the water. Hence the instructions say not to operate out of the water for more than 10 seconds. There are two problems with the heat transfer capacity. One, the copper on the PCB is relatively thin and two, it only touches the light housing on the outer sides. The center where the LED driver is has no contact with the housing. This means the heat dissipation capacity is not high enough to keep the board from overheating.

A heat sink is not a good solution for this application because there is no airflow which means the heat sink won't be able to remove heat efficiently once it is warmed to operating temperature. What is needed is more efficient heat transfer to the housing which transfers to the water. Basically there needs to be thicker copper touching more of the light housing.

A member picked up a sheet of copper remnant from a local metal store and cut it into a ~7" circle. The top was notched out for wiring and some divots were made for the plastic light diffuser that attaches to the PCB. He used some Arctic Silver thermal paste along the light housing to allow for better heat transfer between the copper plate and the housing. He then mounted the PCB onto the copper plate and used the thermal paste again between them.

Bolted it all back up with a new seal and so far so good. Time will tell how effective this is. The only other improvement he thought about was conformal coating the PCB. If anyone tries conformal coat make sure you mask off the LEDs. They have a rubberized lens that the conformal coat will dissolve.

IntelliBrite Repair

The tech installed this board and it did not work because the transformer was actually the faulty part, and when he pulled off the wires to remove the board the J4 connector ripped off with it. It was a new board straight out of a sealed package.

Since the J1 and J4 connectors are surface mount, they're depending on the adhesion of the trace to the board substrate (a copper or aluminum plate) to handle the stress of connection/removal. The manual even says to be careful removing the J1 and J4 connectors.

A member repaired this Intellibrite board that had J4 torn off. For the price of this board he expected a terminal block that's screwed down securely, instead of surface mount quick connects!!

Looking at the board with J4/J1 in the top right, J4 connects to the left side of D23 and to the top right of D32 (I believe D32 is an optocoupler that tells the pic when the power is on). The hand-drawn red line in the photo below shows the connections to J4 that was repaired.

In the fix, the trace leading to D32 was still mostly intact but it tore off of the board between J4 and F1, so a jumper was soldered from the remaining trace to D23. The jumper is covered in glue to hold it down.

The parts on this board are difficult to solder to because they're all sitting on a giant heat sink that sucks up your soldering iron's heat. He finally got a good solder joint onto D23, but also ran the replacement wire/quick connect through the capacitors to glue it down and give it a better chance of staying put.

Pentair GloBrite

In 2024, Pentair released an improved GloBrite light with a blue gasket and black end cap (left side), with improvements to the electronics inside to fix the failures the lights have been having.

The issue with the original Globrites was two different types of material were used in manufacturing. The body and the end where the wire went into the light were different, so when the lights were on, it generated heat, and the seal broke, filling the light with water, which resulted in cracking the housing.

The GloBrite is Pentair's second-generation LED light. It has many of the same features as the IntelliBrite lights, with five fixed colors and seven party modes, and can be controlled similarly.

The GloBrite light and proprietary plastic niche form a low-voltage lighting system that does not require bonding or grounding when powered by a listed 100W or 300W transformer.

The GloBrites have three different niches for gunite, vinyl, and fiberglass surfaces, as shown below.

The GloBrite uses a unique installation tool (P/N 620057) to install and remove it from its niche. Retain the tool from your installer. The optional GloBrite Glare Shield (P/N 620314] is used on GloBrite Color and White LED lights to reduce glare.

GloBrites come with a package of silicone lube in the box. It has a small white ring near the rear of the light. The ring helps hold it into the gunite sleeve. The lube helps slide the light into the tube. Put a little on that rubber seal when installing to help it slide in.

The average life span seems to be about 2-4 years. They crack, water enters, and they get destroyed.

The GloBrites use a proprietary niche, so you're stuck to using them. The GloBrite lights are non-serviceable. The complete light assembly must be replaced if anything fails in them.

If you are planning a pool build, Pentair has a new version called the MicroBrite that you should consider.

Jandy Hydrocool P-Series GloBrite Replacement

A pool contractor member who does Pentair warranty replacements reports that he is replacing failed GloBrite lights with Jandy Hydrocool P-series lights.

They fit the GloBrite niche and work with Pentair automation using the IntelliBrite color scheme. The lights are better built and slightly brighter. They thread right into the niche via small threads in the niche.

The light has its installation tool, several color snap-on face rings to match your current light face colors, and half-covered lenses for directing light up or down.

MicroBrite-G Light

Pentair has three models of MicroBrite lights in an adapter or a MicroBright adapter that will fit into the GloBright niche. The 618040 MicroBrite-to-GloBrite adaptor installs onto any MicroBrite Light and allows it to be mounted into a GloBrite Niche or a ColorVision Bubble. Pentair also offers a MicroBrite-G light kit (item # 620166), which comes with a MicroBrite color light and the adapter but only in 150’ foot cord length.

• WarmWhite LED, for installation in Pentair GloBrite Niche or Pentair ColorVision Bubbler - 602167
• White LED, for installation in Pentair GloBrite Niche or Pentair ColorVision Bubbler - 602165
• Color LED, for installation in Pentair GloBrite NIche or Pentair ColorVision Bubbler - 602166
• The adapter allows a MicroBrite light to be installed into a Pentair GloBrite Niche or Pentair Colorvision Bubbler. - 618040

Florida Sunseeker GloBrite Replacement

Florida Sunseeker makes a GloBrite replacement light with an adapter to fit the proprietary niche. Light is the Pool Tone Nicheless 1 1/2 inch Swimming Pool or Spa Light 15 - 100 Feet and the Adapter for Pentair GloBrite 1.5 or 1-1/2 inch lights. They include the adapter for free if you ask.

Note that a twist lock holds the Globrite light in place while the Florida Sunseeker replacement light is held by friction. It will work quite well on a flat pool wall surface. The lights are about 6" in diameter, much bigger than the Globrite. And they also put out a lot more light.

This member posted satisfaction with the Pool tone nicheless 1.5" light replacing their GloBrite.

Note that the Florida Sunseekers light does not appear to be UL or ETL certified.

Use checkout code TFP7 on the Florida Sunseeker website for 7% off, free USA shipping, and no sales tax on any items.

SR Smith Kelo Light Replacement

A member contacted SR Smith, and this was their response about a straight-up Globrite replacement:

If you indeed have the Pentair GloBrite product installed rather than the MicroBrite product, then no - a Mod-Lite installation would not work. The GloBrite lights use a proprietary niche in the wall with a non-standard keyed interface to the normal 1.5" female threaded wall fitting. In addition, as the Mod-Lite is a 2-piece design, it requires specific dimensions to work correctly. Some companies are selling a silicone bushing that might work to help with the threaded interface, but it will not be accurate or secure enough to work for the 2-piece design. 1-piece lights such as the kelo will work fine, however assuming that you're OK with the ability for the light to be pulled out if given enough force.

Pentair GloBright & IntelliBright colors don't match

The GloBrites are 12V and your IntelliBrights are likely 120V so the colors don't give off the same hue. This is a problem that cannot be corrected and a reason to use only the GloBrites or IntelliBrights.

All IntelliBrite lights Turn On When Changing a Color

Even if lights are connected to separate relays, all IntellBrite lights turn on when you change a color with one on and others off.

The Touch controllers (all of them) only have one IntelliBrite engine. It will activate all lights that are defined with a circuit function IntelliBrite, Magicstream, or Globrite Color whenever you change a theme or any of the Sam modes. IntelliCenter changed this behavior and you can now individually control the theme and sync the groups.

Pentair Color Sync Controller

The Pentair Color Sync Controller (618031) connects by WiFi to the Pentair POOL app, allowing you to control light colors using your phone.

The app that controls it can turn it on and off, set the different colors, and create "light shows." However, it only controls the lights.

One member reports that what doesn't work too well, as of July 2021, is the setting of the various controls:

• the twilight mode does not turn the light on at twilight-turns on when the sun is still pretty bright.
• The timer functions are inaccurate: If set to turn the light on @ 8 PM, it turns on @ 5 PM-ish. I set the light to turn off @ 11 PM, and it turns off @ 8 pm. It seems there is a 3 hr discrepancy between the switch time and my time zone. The solution was to turn it on and off 3 hrs later.
• There is also no integration with Google or Alexa.

Synchronizing Light Colors

The procedure to reset the control board inside of the lights is:

• Turn the lights on
• Within 10-15 seconds of turning on the lights, turn the lights on and off 31 times

This establishes a reset on the lights and resolved the issue with a members Globrite not changing colors properly. This should work for other Pentair LED color changing lights.

If your light is connected to an automation controller you may need to remove the cover where the cords for the lights come up through the conduit and connect to the feed from the transformers. Then unscrew the wire nut to the group of lights from the source transformer (black wire usually) and manually touch the power wire wires 31 times to the other wires still twisted together about 1/2 a second apart each time. We don't think there is a way to do this via automation.

Pentair Amerlite fixture

You can get the Pentair AmerBrite 51W LED (500W equivalent) P/N 602077 to replace the incandescent bulb. This product is discontinued but may be available from vendors.

The AmerBrite LED bulbs were available in 300, 400, or 500 watt equivalencies in 120V or 12V version with an Edison screw base. The AmerBrite LED lamp is a ‘plug-and-play’ replacement for Amerlite incandescent bulbs. The lens can be rotated 180 degrees to provide wide or narrow beam pattern.

Other LED Lights for Pentair Fixtures

Florida Sunseeker

Florida Sunseeker has LED bulbs for screw in Edison style fixtures. They also have aftermarket light engines for the IntelliBrite 5G lights.

The Florida Sunseeker aftermarket IntelliBrite 5G spa light engine has 72 individual LED's versus 6 in the InelliBrite, while the IntelliBrite 5G pool light engine has 488 individual LED's versus 12 in the IntelliBrite, which makes the lights over 3 tines brighter. Sunseeker uses Pool Tone® LED's which are 300% brighter than Pentair.

Florida Sunseeker aftermarket IntelliBrite 5G lights do not sync with Pentair programing. Meaning that color selection will not be the same. They control the same way with a toggle where you turn the power on/off.

Florida Sunseeker also has an upgrade kit for the Pentair® Amerlite® SAM® Color Wheel light to color LED.

Use checkout code TFP7 on the Florida Sunseeker website for 7% off, free USA shipping, and no sales tax, on any items.

There have been questions if the Florida Sunseeker products have gone through the UL676 testing as people have not found them listed. PoolTone Problems!!!!!!!! describes where a PoolTone light melted and damaged the pipe. Given these issues you should be cautious with Florida Sunseekers products.

J&J/Hayward Lighting

J&J ColorSplash LXG-W are screw in Edison socket bulbs compatible with Pentair's IntelliBrite lighting configurations. They have different names for their colors and light shows as shown on the chart above or to the right.

J&J Lighting used to be part of Halco and has been acquired by Hayward.

CMP Brilliant Wonders

CMP Brilliant Wonder lights are a Pentair compatible alternative to the MicroBrite lights.

CMP has been acquired by Fluidra/Jandy.

Jandy WaterColors Nicheless HydroCool Pool and Spa Lights - JLU P-Series

WaterColors Nicheless HydroCool Pool and Spa Lights - JLU P-Series look similar to CMP Brilliant Wonders lights that Fluidra acquired.
