Does anyone know what the resistance should be on the igniter? My heater quit working and was getting an open, so I installed a new igniter and it’s not working either. I failed to check the resistance before installing, but after failing to light the resistance is open again. I measured the voltage and got a reading of 135ac. Could that be blowing the igniters? Suggestions?
JXI 400 Igniter Resistance
- Thread starter Nkepmkep
- Start date
swamprat69
Well-known member
Not sure about the specific ignitor used in the Jandy, but the Supco round (spiral style) ignitor used in residential furnaces is ~ 40-100 ohms cold and operates at ~ 120V.

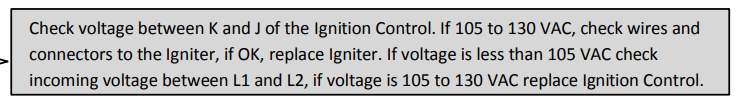

Thank you. Do you think the 135ac at the terminals could be breaking the ignite? The manual states a range up to 130, so I would think it should still be ok.
swamprat69
Well-known member
Most parts specs allow a differential of + or - 10%. This would put max voltage at 132 volts. This would put the variance from max voltage at just over 2%. While this would definitely shorten the life of the ignitor somewhat, I don't think that it would be a cause for repeated catastrophic failures. Silicon carbide ignitors are both somewhat fragile physically ( from a physical shock like accidentally bumping it against a hard surface) and also prone to fail from surface contamination before installation (like touching the ignitor surface with your hands).
- Jun 7, 2017
- 9,975
- Pool Size
- 29000
- Surface
- Plaster
- Chlorine
- Salt Water Generator
- SWG Type
- Jandy Aquapure 1400
If you measure any connectivity at all on your ignitor, chances are it is working. When they fail, they crumble apart.
You can check the amperage going to the ignitor with a clamp ammeter or an inline ammeter.
If the amperage is exceeding 5 amps, then the ignitor might be getting too hot from excessive voltage.
You might need a true RMS meter to get a good read on the voltage because of how the 120 volt voltage is supplied when the unit is connected to 240 input supply.
If the amperage is exceeding 5 amps, then the ignitor might be getting too hot from excessive voltage.
You might need a true RMS meter to get a good read on the voltage because of how the 120 volt voltage is supplied when the unit is connected to 240 input supply.
Last edited:
Thank you all. I’ll check the amperage. Definitely not getting any connectivity on the ignite, so did order another one.
Put in new igniter today, and it's working! This time I checked the ignitor's resistance before installing. Unfortunately, I'm not sure if I received a bad igniter the first time, or I damaged it when I installed it.
I didn’t have an ammeter, so I just decided to give it a shot. I put one on order and will check it when it comes in. Hoping the first replacement igniter was just bad.
