Does anyone know of a wifi-enabled filter pressure gauge?

Jump to latest Follow Reply
anotherpyr said:
Did they update it? When I read it, the typical car (an SUV) was the Ford Explorer. But they didn’t cost $40,000 when I read it.
Click to expand...
I read the first one, I think they did update it again. All high school age kids need to read and understand that..
Heard a interesting survey once..Don't remember the details but the people who make over $200K a year spent a LOT less on their kids prom then people who makes less then $35K

At some point soon I plan on tackling this. I think @cmc0619 has made some progress in this department.

Once I have my pH sensor wired up into my automation system the same principals would apply to a pressure sensor. You will need some form of computing platform and ADC to read the data, but it is not overly complex.

  • Like
Reactions: MyAZPool and markayash
MacGyver69 said:
Is this what you are looking for?: www.SmartPoolGauge.com
Click to expand...

Know anything about it?

A glance at their website site makes it look like one of those WiFi devices that requires Internet access to the manufacturer's cloud service. If they won't let you connect directly to the device, you'll be paying to be able to continue using it after the first year, and you'll be completely out of luck if they go under.

Most people make enough to be comfortable in this country, but many don't know how to save at all. One of the keys to this is not doing things like having pools built! (oops). But doing most stuff yourself, buying the second or third quality stuff instead of the best, etc. go a long way. I wish the maintenance in Pool Math would add a "descale SWCG" option. It appears I will need that. More on that later in my own thread.

  • Like
Reactions: markayash
My DIY controller reads a pressure transducer hooked to my filter It's not wireless though. You could do something like that though.

If you're handy, here's the parts to make one.

Raspberry Pi Zero WH - $36.49 (you can hunt around online and they're like $15)

Amazon.com: Raspberry Pi Zero WH (Zero W with Headers) : Electronics

Amazon.com: Raspberry Pi Zero WH (Zero W with Headers) : Electronics
www.amazon.com
Battery - $40 (You could cut this cost out by plugging it into electrical at the pad)

Amazon.com: Pisugar Portable 900 mAh /1200 mAh Lithium Battery Power Module for Raspberry Pi-Zero, Pi-Zero W/WH Model Accessories (Not Include Raspberry Pi) (1200 mAh): Home Audio & Theater

Amazon.com: Pisugar Portable 900 mAh /1200 mAh Lithium Battery Power Module for Raspberry Pi-Zero, Pi-Zero W/WH Model Accessories (Not Include Raspberry Pi) (1200 mAh): Home Audio & Theater
www.amazon.com
ADC hat for the Pi - 17.95$

Amazon.com: Seeed Studio 4-Channel 16-Bit Analog-to-Digital Converter(ADC) Based on ADS1115 with Analog Grove Connector for Raspberry Pi Same Size as Pi Zero : Electronics

Buy Seeed Studio 4-Channel 16-Bit Analog-to-Digital Converter(ADC) Based on ADS1115 with Analog Grove Connector for Raspberry Pi Same Size as Pi Zero: Desktop Barebones - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
www.amazon.com
Pressure Transducer - $16.90 (Screws right into the outlet of your filter at the top, can even put a splitter on it to keep your analog version)

Generic Carbon Steel Alloy Variable Pump Water / Air Pressure Sensor(DC 5V) - - Amazon.com

Generic Carbon Steel Alloy Variable Pump Water / Air Pressure Sensor(DC 5V) - - Amazon.com
www.amazon.com

Then you just run the pressure transducer to the ADC hat and run software on your pi that reads it and transmits it to your smarthome software, or runs a webpage where you can view it, etc, etc. All wirelessly. I recommend node-red running on the pi to program it, it's simple to use and there's a few of us on here that could lend a hand should you need it.

EDIT: This ADC board is easier to use (no voltage divider, just plug and play) but it's sourced from a UK company
www.abelectronics.co.uk

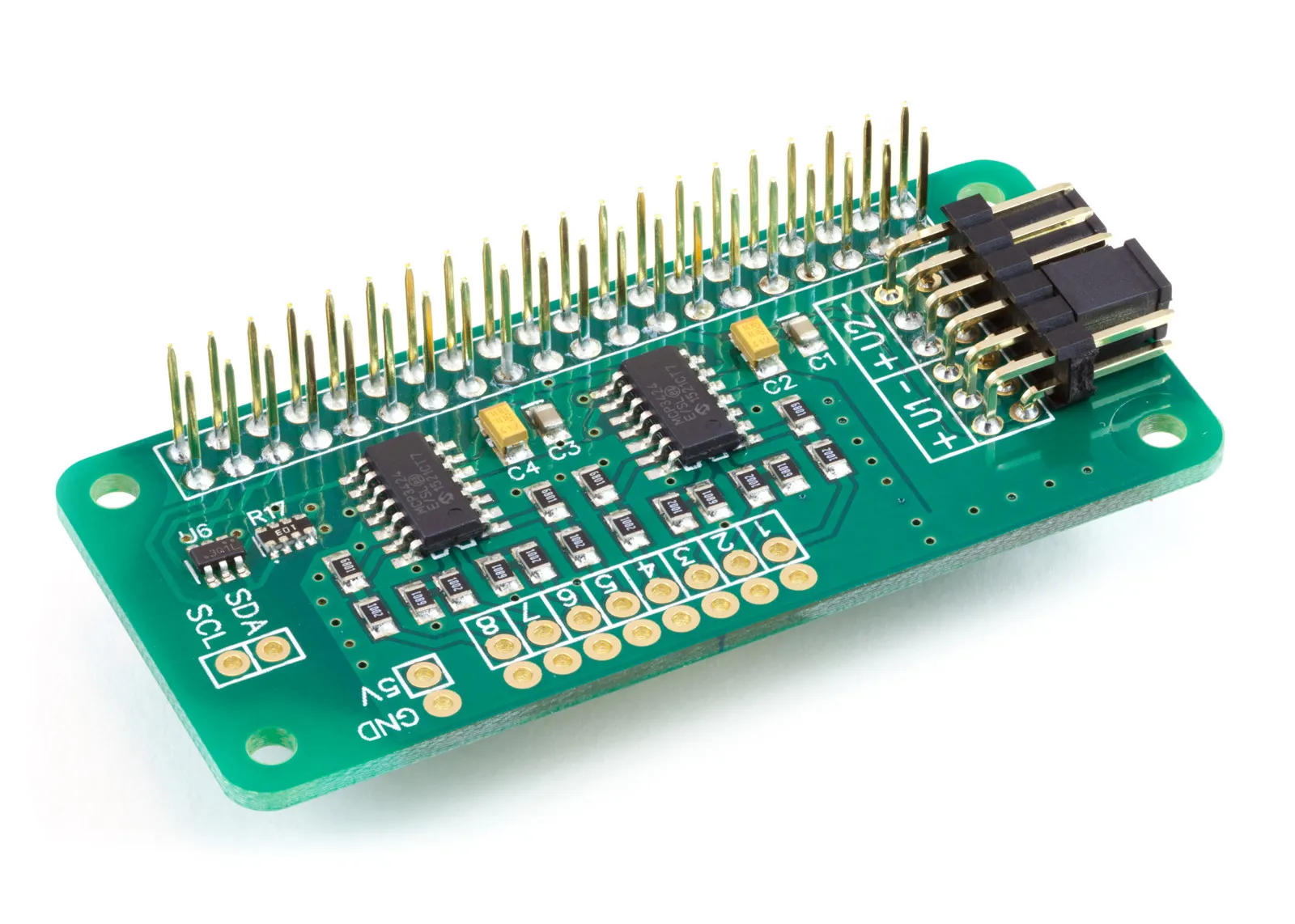

Raspberry Pi ADC (Analog to Digital Converter) - ADC Pi
