I can't find the performance curve for intelliflo 3vsf. not on the pentair site or in the manual. does anyone here harken to have it?

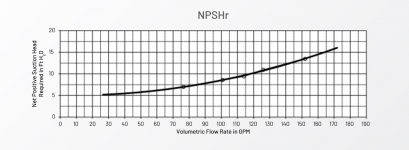

performance curve?
- Thread starter suprstrmis
- Start date
thanks so much. super helpful. question, what do the "abcd" represent on the second chart?
thank you everyone for your help. i thought i understood how to read it but now i'm realizing i dont. for the 3.0hp model i'm trying to figure out at what rpm to run the pump to achieve 20 gpm up to 40 gpm. is there a formula to help determine this? i tried plugging in some ratios based on what i saw in the literature [it said 1-100%(450-3450RPM)] but i wasnt getting consistent answers. I'm trying to figure out how many times my pool is turning over in a day. ideally i'd like 2 in the summer.
Abcd are system curves.
You only need enough flow to do a task like skimming, heating, SWG etc.
Forget about turnover.
Run as slow as possible while doing the task intended.
You only need enough flow to do a task like skimming, heating, SWG etc.
Forget about turnover.
Run as slow as possible while doing the task intended.
