Changing Intelliflo shaft seal and.....

[griffths]

I am in the process of changing the shaft seal on my 2011 Intelliflo 011018 pump. I purchased the Pentair go kit and have gotten things apart and started to do the clean up and reassembly when I noticed that the rubber seal in between the shaft seal and front bearing has a slight crack in it.

There is no water damage to the bearing and it feels smooth when I rotate the shaft but to be safe I would like to replace the rubber seal before reassembly.

The problem I have is that the rubber seal does not appear on the usual parts diagrams I have been able to access so I am at a dead end trying to locate one. I searched for Pentair VS-20 which is the number embossed on the rubber seal without success.

Does anyone have any suggestions to locate one or if I should even be worrying about the condition of my existing rubber seal?

I appropriated this pic from another thread related to shaft seal replacement to show the seal I am referring to:



[InyoRich]

Per this thread, it's kind of an oversized bearing protector/water slinger to help protect the motor bearing in case the shaft seal fails. I might reinstall it if it doesn't seem like it will break in the near future or get a new water slinger (a little rubber "washer" to help sling the water away from the motor bearing if there is a leak). I can't find the part to point you in a direction to get a new one.

Intelliflo 011018 pump spit this out...

I was out at the pool pad today when the pump turned on and I heard an unusual random ticking/clicking sound coming from the pump while it was running. After about a minute, the unusual noise stopped and I saw a rubber part fall from the pump and roll a few inches across the concrete pad. The...

www.troublefreepool.com



[Flying Tivo]

Might help a little.

Had a little fun with my Intelliflo VSF pool pump! (seal replacement)

My pump is 4.5 years old and has been working flawlessly about 3-5 hours a day. The story goes like this: Started to notice an oxidation drip from the back of the impeller housing, very small. So today in the afternoon i stared the whole process, first was ordering the seal kit a week ago...

www.troublefreepool.com



[1poolman1]

Per this thread, it's kind of an oversized bearing protector/water slinger to help protect the motor bearing in case the shaft seal fails. I might reinstall it if it doesn't seem like it will break in the near future or get a new water slinger (a little rubber "washer" to help sling the water away from the motor bearing if there is a leak). I can't find the part to point you in a direction to get a new one.

Intelliflo 011018 pump spit this out...

I was out at the pool pad today when the pump turned on and I heard an unusual random ticking/clicking sound coming from the pump while it was running. After about a minute, the unusual noise stopped and I saw a rubber part fall from the pump and roll a few inches across the concrete pad. The...

www.troublefreepool.com

Those come with the motor and aren't listed separately as a part.



[JamesW]

I think that it's either:

Part number ZBR44430 Frame 71 V-Ring kit or

Part number ZBR44440 Frame 80 V-Ring kit

Speck Pumps V-ring, 18mm - 2923151601 - INYOPools.com

V-RING, 18 MM (2923151601)

www.inyopools.com

V-Rings & V-Seals | Global O-Ring and Seal

V-Rings work well on their own, excelling when combined with rotary shaft seals and help to extend the life of bearings, oil seals, and shafts.

www.globaloring.com

https://www.amazon.de/-/en/Nitrile-Rotating-Waterproof-Hydraulic-V-Rings/dp/B09TD1DFXQ

SKF

www.skf.com

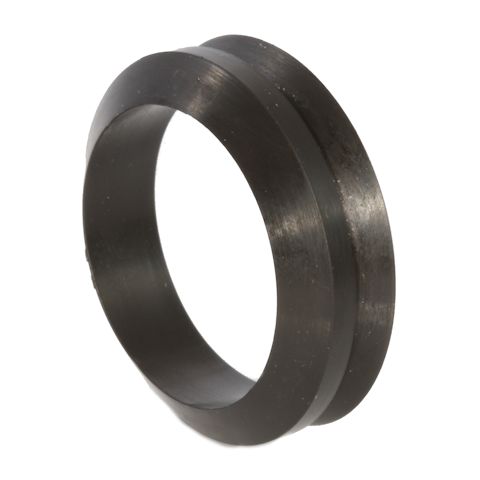

V-ring Seal VS20-NBR20mm.

<p><span>The V-ring Seal with the reference VS20-NBR has an inner diameter of</span><span> mm and a thickness of mm. It is made of NBR.</span></p>

www.123bearing.com

VA-020 NBR V-Ring, 0.71" ID x 1.03" OD x 0.30" Height

VA-020 NBR V-Ring, 0.71" ID x 1.03" OD x 0.30" Height

www.gallagherseals.com

V20S V-ring type S seal for shaft sizes 19 - 21mm (VS20)

Wych Bearings - Buy Online. Bearing Supplier, Housed Bearings, Oil Seals, Adhesives, Lubricants, Roller Chains, Sprockets and Engineering Supplies. Service from your local Bearing Supplier, Nationwide.

www.wychbearings.co.uk



[JamesW]

VS-020/N60 | Global O-Ring and Seal

SIZE 020 VS STYLE V-RING NITRILE (NBR) 60 DURO BLACK 18MM ID X26MM OD X10.5MM W SHAFT RANGE: 19-21 MM…

www.globaloring.com

VS-020/V60 | Global O-Ring and Seal

SIZE 020 VS STYLE V-RING VITON 60 DURO BROWN 18MM ID X26MM OD X10.5MM W SHAFT RANGE: 19-21 MM…

www.globaloring.com

Shop | Global O-Ring and Seal

www.globaloring.com

14450 John F Kennedy Blvd
Houston TX, 77032





500 Hertzog Blvd, King of Prussia, PA 19406

VA-020 NBR V-Ring, 0.71" ID x 1.03" OD x 0.30" Height

VA-020 NBR V-Ring, 0.71" ID x 1.03" OD x 0.30" Height

www.gallagherseals.com

Rotary V-Ring Series A

The GFS V-Ring Series A is a one-piece all rubber rotary shaft seal, which stretches to fit on a shaft. It is held in place by its own tension on the shaft and the seal axially mounts against a stationary counter-face. It rotates with the shaft acting as a slinger, while the lip of the V-Ring...

www.gallagherseals.com



[JamesW]

https://www.amazon.com/Size-Style-V-Ring-Nitrile-Black/dp/B08JVJX9D4

https://www.amazon.com/TCM-VS-020-BX-Rubber-V-Ring-Nominal/dp/B01BXWKA80

https://www.motion.com/products/sku/09194034

Dichtomatik VS-020-BX 75095233 OIL SEAL V-RING

VS-020-BX OIL SEAL V-RING

www.mrosupply.com

VS V-Seals

12064 FM 3083, Conroe, TX 77301.

SKF

www.skf.com



[JamesW]

I searched for Pentair VS-20 which is the number embossed on the rubber seal without success.

Pentair does not make the motors or the seals.

The motor is made by Lafert S.p.A. in Venice, Italy.

S.p.A. means “Società per azioni” and it is a form of corporation in Italy, meaning "company with shares", “Joint stock company” or “Public Limited Companies by Shares.

Electric motors - Lafert Group - Electric motor

Lafert Group s.p.a. designs and manufactures electric motors in AC and DC power for all types of applications: industrial, servo, automotive, etc ...

www.lafert.com

Lafert does not make the rubber V-Rings; they buy them from a supplier.

Most companies that manufacturer things use a combination of parts they make and parts they buy.

So Pentair might make some of the pump parts and buy parts like the motor and seals etc.

The motor maker might make some parts of the motor but they will also buy parts like the bearings, V-Rings etc.



[JamesW]

Steelco makes and sells steel to Ballco LLC who makes the steel balls for the ball bearings and sells them to ball bearing LLc who makes the ball bearings and they sell them to Lafert who makes the motor and sells it to Pentair who makes the pump and sells it to Superior Pool Co who sells it to the builder who sells it to the homeowner.

Steelco <--> Ballco LLC <--> Ball Bearing CO <--> LaFert <--> Pentair <--> Superior <--> Pool Builder dudes <--> Johnny Homeowner.

So, it can be a long and complex series of different supplier who make it possible for a product that ends up on your property.

If you need to replace the balls in your ball bearings, you have to track down the ball supplier.



[griffths]

@JamesW, Thank you for your excellent research assistance.

With the information you provided, I was able to find many sources of this seal.

Regards,

Jay



[JamesW]

Let us know if you find the correct V-Ring so that we know for future reference.

If you can provide source and cost, that would be great.



[griffths]

I will confirm correct fit when I receive it.

I bought from this seller on eBay due to the availabiliy. Paid 11.00 (best offer) plus tax shipped.

I did find a few online stores that were selling for around 7.00 shipped but did not have any in stock so I went ahead and paid the four dollar premium to get it quicker.

Unfortunately, it will be a while before I need to put my pump back in service as we just got around 4 inches of snow this morning.



[JamesW]

This is $1.61, but that does not include shipping and they might not sell to the public.

VA-020 NBR V-Ring, 0.71" ID x 1.03" OD x 0.30" Height

VA-020 NBR V-Ring, 0.71" ID x 1.03" OD x 0.30" Height

www.gallagherseals.com

Global O-Ring is probably also low without shipping, but they might also not sell to the public.

VS-020/N60 | Global O-Ring and Seal

SIZE 020 VS STYLE V-RING NITRILE (NBR) 60 DURO BLACK 18MM ID X26MM OD X10.5MM W SHAFT RANGE: 19-21 MM…

www.globaloring.com



[griffths]

I came across those two suppliers but figured that shipping would easily be 5-10 dollars so the price would have been as much or more than the others I mentioned.

I did consider calling and asking for a sample to be sent for evaluation but in the end, I possibly overpaid for the part to minimize the time and hassle involved in obtaining the needed seal.



[griffths]

Following up to close out this thread.

New seal was delivered today. Glad it was a rubber seal and not moms good china as box was flattened out like a pancake.

Seal is an exact match for the original one.

For the price it gives me a better level of comfort than reusing the original one. Not only was the old one cracked but it was apparently dried out as the replacement one is a lot more pliable.

Replacement seal is on the left of both pictures.
